Visualizing field files

OpenFTS field files can be visualized a few different ways by using the fieldkit library located here. In this tutorial, we will visualize density field files using each method available. To begin enter a directory containing OpenFTS and your field file, which in this tutorial will be named density.dat and correspond to a gyroid phase.

With matplotlib.pyplot

This is the best method for quickly visualizing field files. To do so, we run the following in python:

import fieldkit as fk
density_fields = fk.read_from_file('density.dat')
fk.plot(fields=density_fields, show=True)

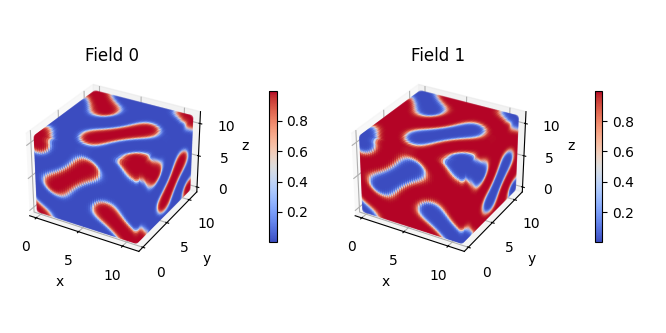

matplotlib.pyplot example

For common operations like these, fieldkit has standalone scripts that can be executed from the command line to accomplish the same task.

$ OpenFTS/extern/fieldkit/tools/fk_plot.py density.dat

With visual molecular dynamics (VMD)

For more control over your visualizations you can use VMD. We first use fieldkit to convert the field file to the cube file format.

import fieldkit as fk
density_fields = fk.read_from_file('density.dat')
fk.write_to_cube_files(prefix='density', fields=density_fields)

Alternatively we can run the following from the command line:

$ OpenFTS/extern/fieldkit/tools/fk_convert_to_cube.py density.dat

This generates a cube file per field in the field file. Let’s now visualize the first field.

$ vmd density_field0.cube

fieldkit labels each voxel as an atom in the cube file in addition to converting the field data to volumetric data. We can therefore either visualize the voxels themselves:

vmd > mol rep Points 20
vmd > mol color Charge
vmd > mol addrep 0

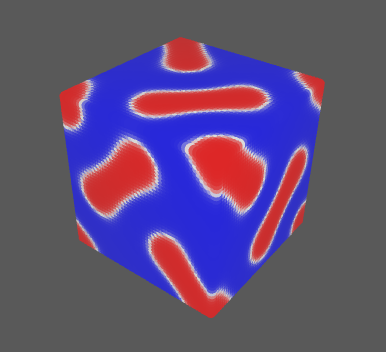

VMD example 1

Or visualize the volumetric data by computing isosurfaces, where here we set the isovalue to 0.75.

vmd > mol rep Isosurface 0.75 0 3 1 1 1
vmd > mol color ColorID 16
vmd > mol addrep 0

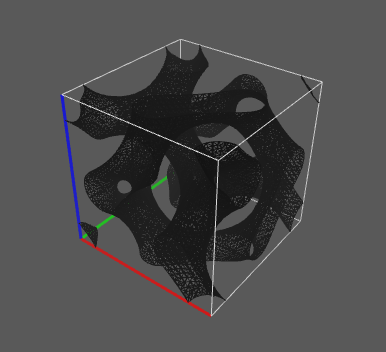

VMD example 2

With paraview

For the greatest control over your visualizations you can use paraview. First we use fieldkit to convert the field file to a VTK file.

import fieldkit as fk
density_fields = fk.read_from_file('density.dat')
fk.write_to_VTK(filename='density.vtk', fields=density_fields)

We can also alternatively do so from the command line.

$ OpenFTS/extern/fieldkit/tools/fk_convert_to_vtk.py density.dat

This generates density.vtk which we can visualize with paraview.

$ paraview density.vtk

Like VMD, paraview can also compute isosurfaces as well as other sophisticated visualizations. To compute the same isosurface as we did in VMD, first we must apply the density.vtk file.

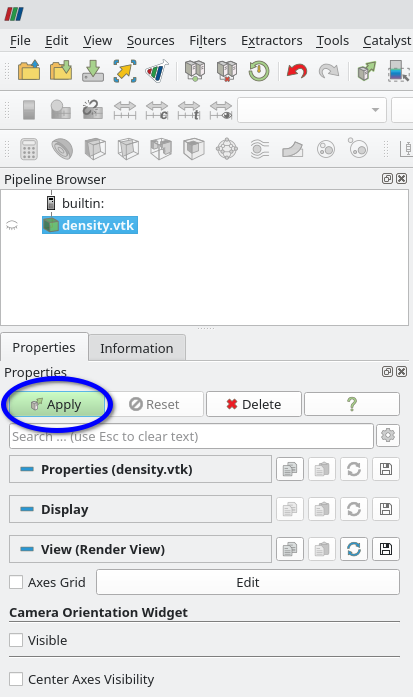

paraview example 1

Next we have to configure the isosurface and make the axes visible.

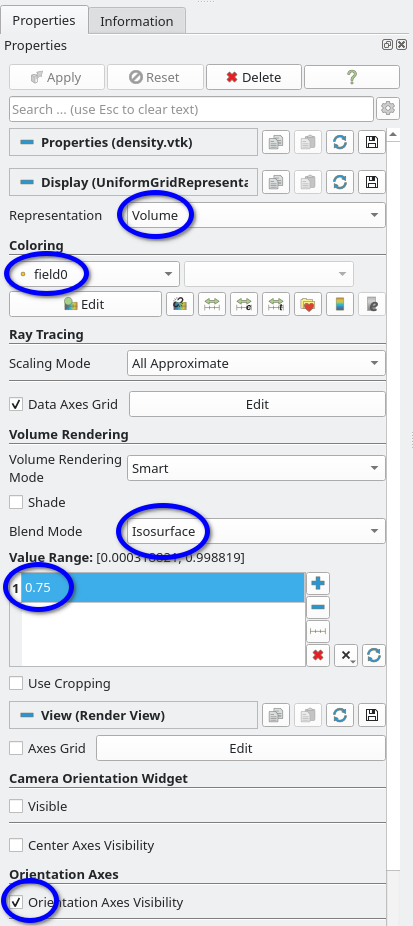

paraview example 2

And now we have a visualization of the gyroid phase. Something to keep in mind: as your total number of plane waves increase for your fts object, interacting with the visualization can become slow. For high numbers of plane waves, we find that paraview gives the best performance.

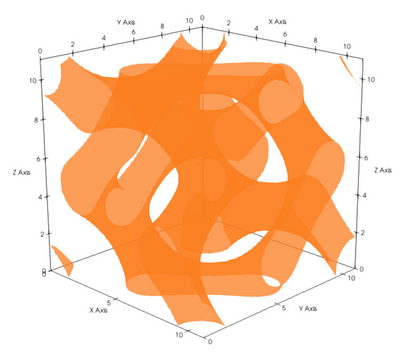

paraview example 3
